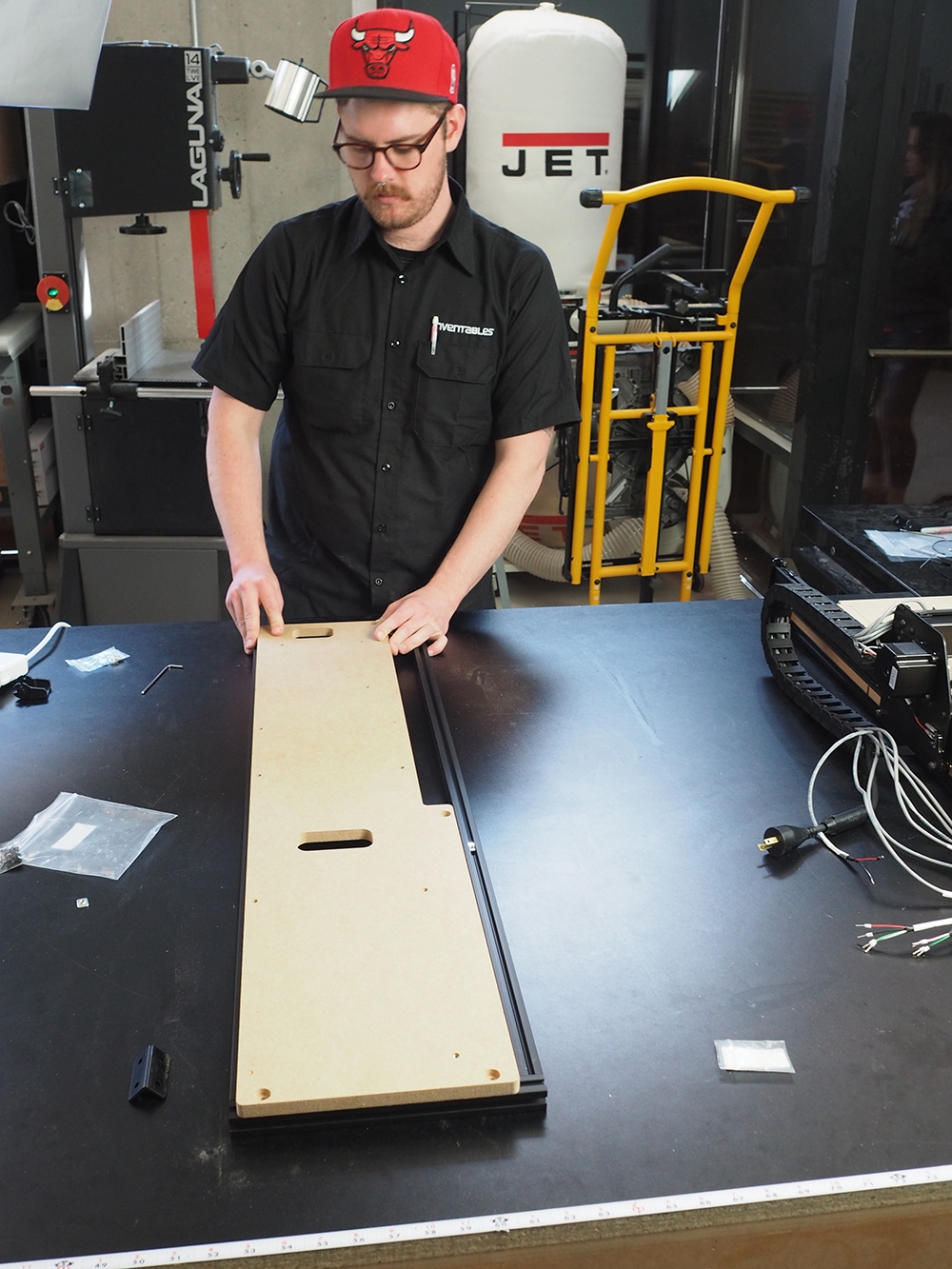

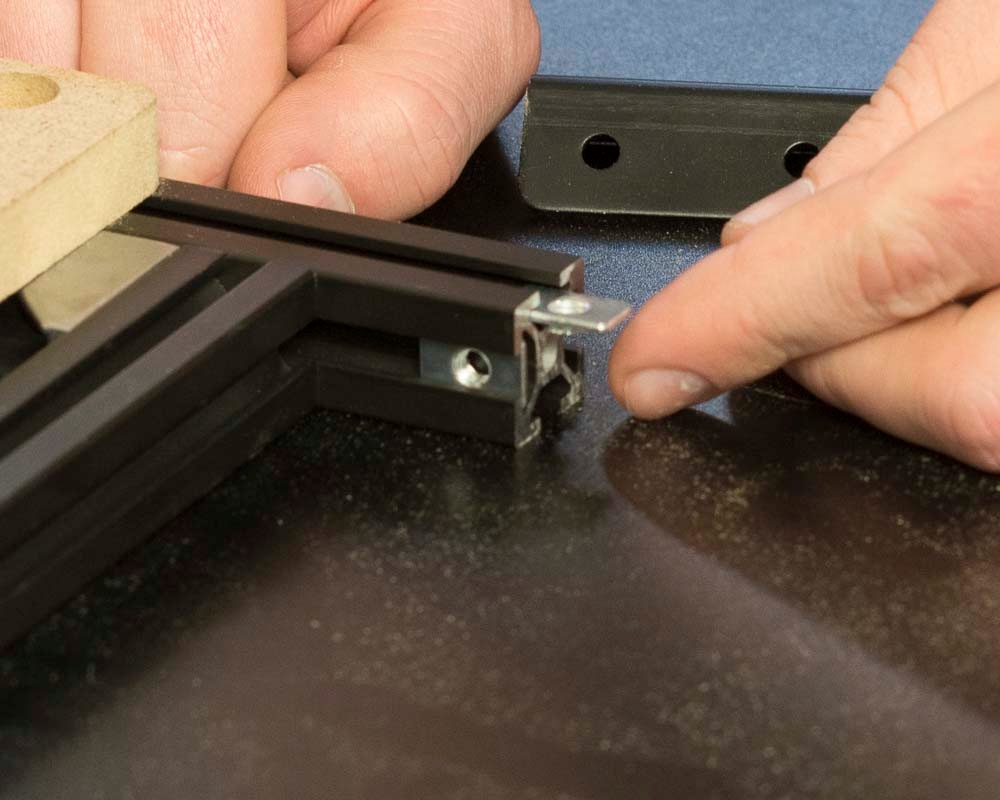

# Side Board (Optional) | **1000mm Side Board Kit** | | | | ------------------------- | ------------------------------ | ------------ | | **SKU** | **Name** | **Quantity** | | 30684-01 | Extrusion Connection Bracket | 2 | | 25281-13 | T-Slot Nut M5 Pre-Assembly | 21 | | 26018-03 | Extrusion Bracket (Gusset) | 4 | | 30517-11 | Threaded Insert M5 | 12 | | 30685-03 | Side Board, X-Carve 1000mm | 1 | | 26049-10 | Extrusion T-Slot 20x20 x 250mm | 2 | | 26049-04 | Extrusion T-Slot 20x20 x 958mm | 2 | | 25286-34 | Button Head Cap Screw M5 x 8 | 8 | | 25286-37 | Button Head Cap Screw M5 x 10 | 8 | | 25286-41 | Button Head Cap Screw M5 x 12 | 5 | | 25286-47 | Button Head Cap Screw M5 x 14 | 12 | | **1000mm Drag Chain Kit** | | | | ------------------------- | --------------------------- | ------------ | | **SKU** | **Name** | **Quantity** | | 30554-06 | Flat Head Cap Screw M5 x 10 | 2 | | 26016-03 | T-Slot Nut M5 Post-Assembly | 2 | ![](https://1344225073-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2F-MhnKtrxIx8xGheKaj3h%2Fuploads%2F7G83SonVLj3xttj17Kg6%2FDJI_20210907_104534_117.jpg?alt=media\&token=11b8cc06-31f0-4082-a3fc-3191fcdf2db9) Install all threaded inserts into side board. ![](https://1344225073-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2F-MhnKtrxIx8xGheKaj3h%2Fuploads%2FHGjY9FZ6GoDl6JgBSeOr%2Fimage.png?alt=media\&token=e0f7f1c6-e505-4bca-969e-94b5e77c6b44) Insert 2 pre-assembly t-slot nuts on the side of each aluminum extrusion (facing inward). These will be used to attach the gusset brackets to the extrusions. Insert 1 additional pre-assembly t-slot nut on the top side of one of the 958mm extrusions to match up with the middle countersunk hole on the sideboard. ![](https://1344225073-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2F-MhnKtrxIx8xGheKaj3h%2Fuploads%2FWG6rGw7JAWh5IKDqgVbA%2Fimage.png?alt=media\&token=01a0097b-9d76-4353-9775-918f55ebc044) Loosely assemble frame using the 20mm x 20mm aluminum extrusion, 4 gusset brackets, 8 pre-assembly insertion nuts and 8 M5x10mm button head cap screws. ![](https://1344225073-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2F-MhnKtrxIx8xGheKaj3h%2Fuploads%2Fkl48wpn0rNo9mGjzB5WY%2Fimage.png?alt=media\&token=d3936ca6-9b37-46eb-877d-b5b6a478eeba) Place sideboard over the frame and line up 958mm extrusion with the pre-assembly t-slot nut under the middle countersunk hole. Tighten all 8 M5x10mm button head cap screws to secure gusset brackets. Slide 2 pre-assembly t-slot nuts on the top of the 250mm aluminum extrusions. Attach the sideboard to the frame by placing 5 M5x12mm button head cap screws in the countersunk holes and securing them into the pre-assembly insertion nuts. ![](https://x-carve-instructions.inventables.com/1000mm/step7/photo/P4220548jpg11.jpg) Insert pre-assembly t-slot nuts into the ends of the sideboard and wasteboard frame. These will be used to attach the side board to the X-Carve frame using the extrusion connection brackets. Use M5 x 8 button head cap screws to secure the extrusion connection brackets. ![](https://x-carve-instructions.inventables.com/1000mm/step7/photo/jpfs_DSC2935.jpg) ![](https://1344225073-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2F-MhnKtrxIx8xGheKaj3h%2Fuploads%2F2ZH0kD0d6KwUyHQ4eLkv%2FIMG_4093.jpg?alt=media\&token=b50329b7-c38c-48b5-851a-caa01eaccfbf) {% hint style="info" %} If needed, you can find additional M5 x 12mm Button Head Cap Screws in the Spare Parts Kit. {% endhint %} {% hint style="info" %} If needed, you can find additional M5 Post-Assembly Tee Nuts in the Spare Parts Kit. {% endhint %} Use 2 post-assembly t-slot nuts and 2 M5 x 10 flat head screws to secure the drag chain to the sideboard. ![](https://1344225073-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2F-MhnKtrxIx8xGheKaj3h%2Fuploads%2FnHjoWIm7JwE8VomRppr5%2Fimage.png?alt=media\&token=4612136f-7704-4e1f-8e72-7097d6afd3e3) ![](https://1344225073-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2F-MhnKtrxIx8xGheKaj3h%2Fuploads%2FgPURoiovBxO9uKXqG1tc%2FIMG_4097.jpg?alt=media\&token=af9e1957-be32-4b8e-a999-81eee5f0ad8a) ![](https://1344225073-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2F-MhnKtrxIx8xGheKaj3h%2Fuploads%2FuCK8HvJ8dw3n7wMBYOXo%2FIMG_4100.jpg?alt=media\&token=0f4cf1bb-e038-4f8f-b008-e98c01d6fe3a) ![](https://1344225073-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2F-MhnKtrxIx8xGheKaj3h%2Fuploads%2Fp5Kdl6DhHjrLZGhZklNg%2FIMG_4102.jpg?alt=media\&token=2e25a883-d3d5-456c-93fc-7e5eb121d6d4) Lift the machine onto the side board and tighten down remaining button head cap screws. ![](https://1344225073-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2F-MhnKtrxIx8xGheKaj3h%2Fuploads%2FQn2Wrrx4KgjeBu5XlwmA%2FIMG_4103.jpg?alt=media\&token=8dce20ec-b89d-4a76-a682-3444fe5bc4e1) ![](https://1344225073-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2F-MhnKtrxIx8xGheKaj3h%2Fuploads%2FYmewSZssyOKwrbFqGXHv%2Fimage.png?alt=media\&token=7ed8bae1-506b-42c1-9983-1b2eff369d36) **NOTE:** The M5 x 14 button head cap screws will be used to attach the X-Controller to the sideboard. Extra screws can be used to mount components not included with the X-Carve. --- # Agent Instructions: Querying This Documentation If you need additional information that is not directly available in this page, you can query the documentation dynamically by asking a question. Perform an HTTP GET request on the current page URL with the `ask` query parameter: ``` GET https://inventables.gitbook.io/x-carve-assembly/side-board-optional.md?ask= ``` The question should be specific, self-contained, and written in natural language. The response will contain a direct answer to the question and relevant excerpts and sources from the documentation. Use this mechanism when the answer is not explicitly present in the current page, you need clarification or additional context, or you want to retrieve related documentation sections.
